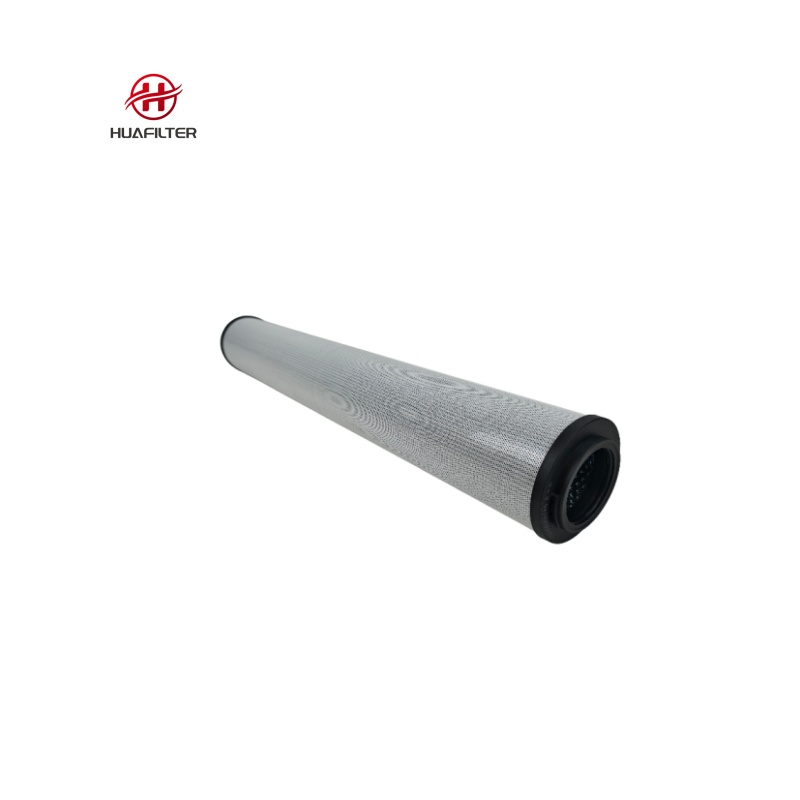

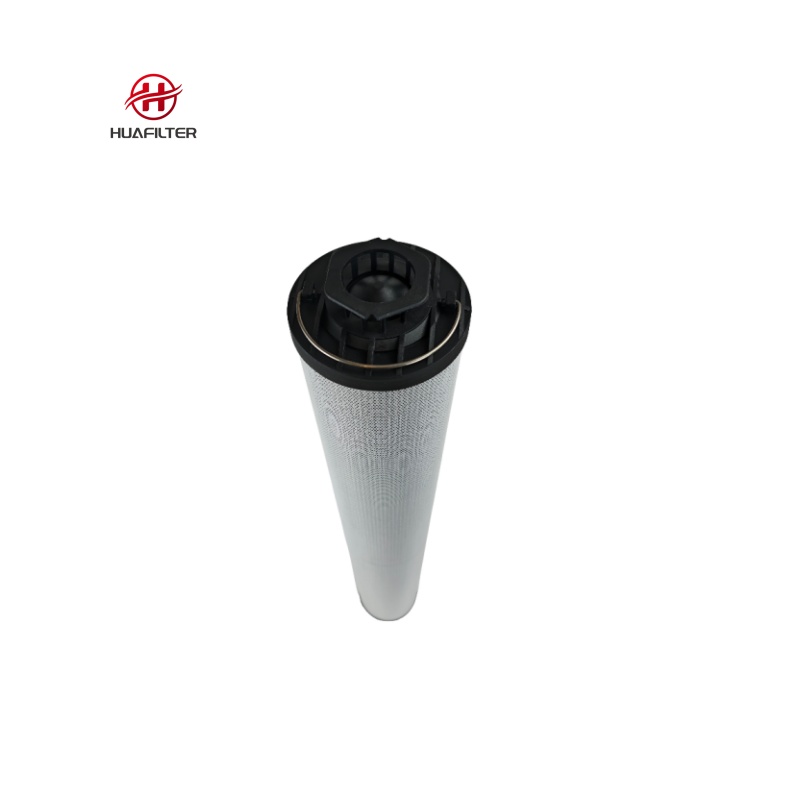

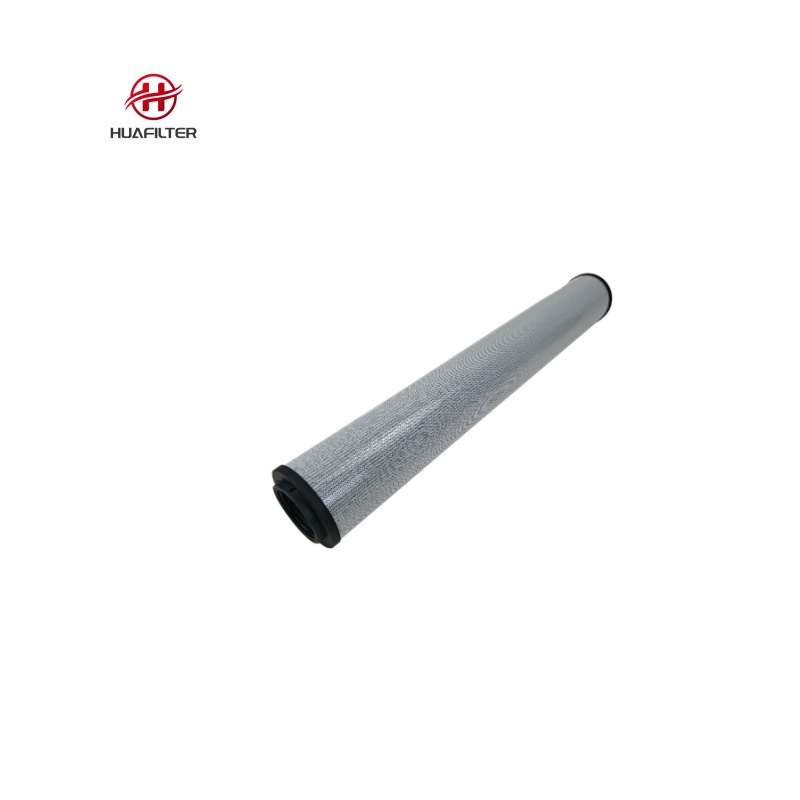

The replacement for Hydac 1300R010ON filter element is made of folded glass fiber and the frame is stainless steel, which has high temperature resistance. Its working temperature is between -30 and 100℃. This replacement filter element is suitable for a variety of hydraulic oil and emulsion filtration scenarios. The replacement filter element performs well in harsh environments, such as high temperature, high pressure or corrosive media, and can still maintain stable filtering performance.
| Technical Data | |
| Efficiency 1 | 10μ@β200 |
| Efficiency 2 | 12μ@β1000 |
| Style | Return line element |
| Out Diameter | 143.5mm |
| Inner Diameter | 96.5mm |
| Length | 483mm |
| Media Type | Glass Fiber |
| Flow Direction | Out-in |
| Collapse Pressure | 20 bar |
| Seal | Nitrile |
| Temperature Range | -30~+100℃ |
Features:
▶Made of high-quality filter material, it has the characteristics of high filtration efficiency and long service life.
▶Compact structure, small size, easy to install and maintain.
▶Suitable for a variety of working media, such as hydraulic oil, phosphate ester hydraulic oil, emulsion, etc.
Application:
Replacement for Hydac 1300R010ON return filter element is widely used in metallurgy, hydraulic and pneumatic systems, automation control and other fields. In the metallurgical industry, this filter element is used for filtering the hydraulic systems of rolling mills and continuous casting machines; in hydraulic systems, it is used as a return oil filter to protect hydraulic pumps and valve components; at the same time, it can also be used as a matching filter element for pressure switches in automation control systems.
