The variable motor A6V200 is a bent axis axial piston variable motor with the characteristics of high pressure, large displacement, adjustable speed and torque. The maximum working pressure of A6V200 motor can reach over 350 bar, which is suitable for heavy-load scenarios. Huade’s axial piston variable motor A6V200 features a compact design that is ideal for space-constrained equipment.

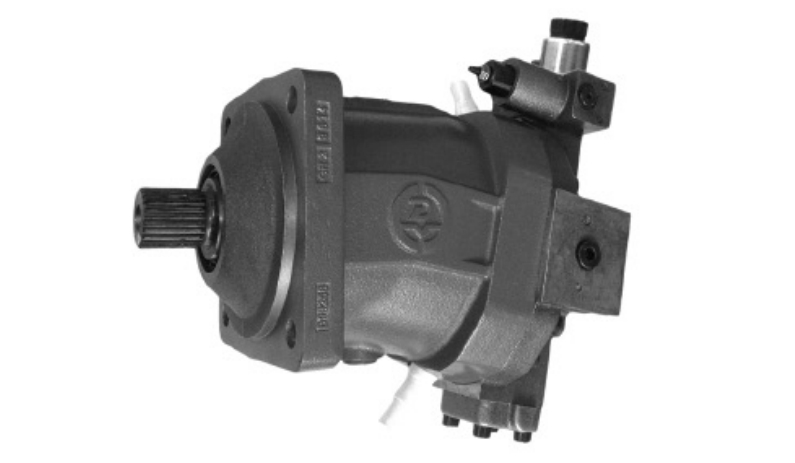

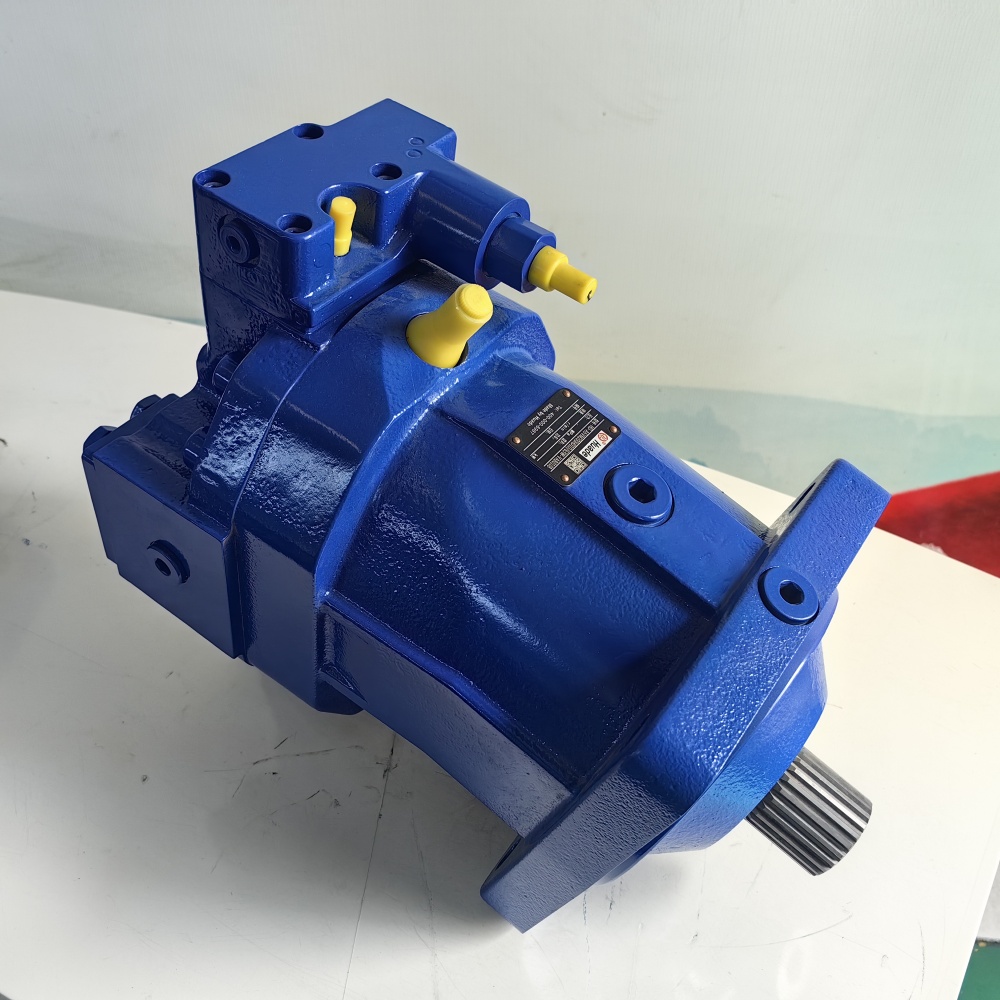

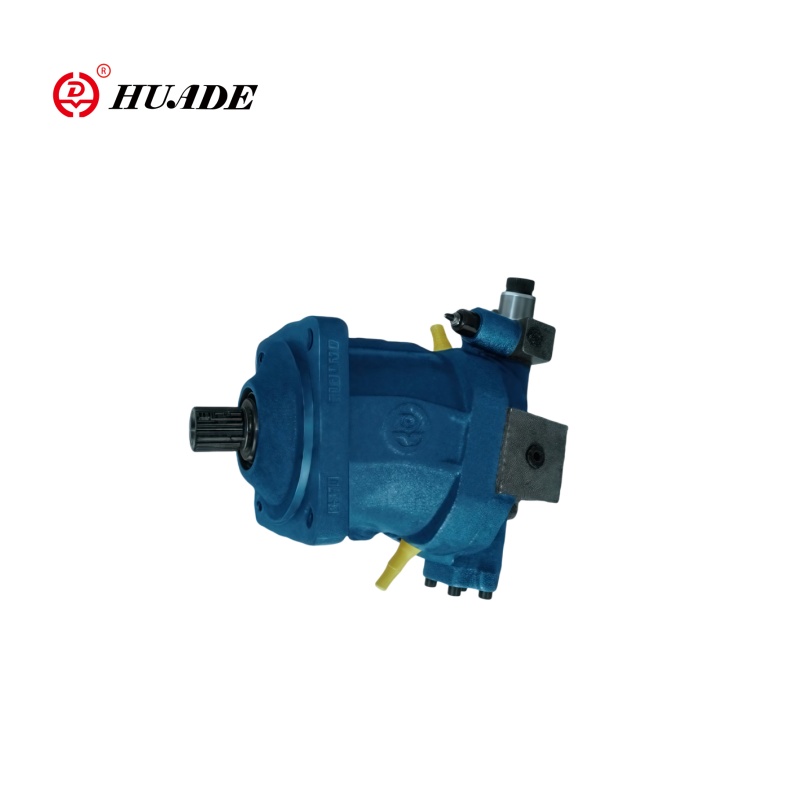

Pump display
| Operating pressure range | |
| Pressure on port A or B | |
| Nominal pressure | PN=40MPa |
| Peak pressure | Pmax=45MPa |
| Total pressure(press. A+press.B) | Pmax=70MPa |
| Temperature Range | |
| The FKM shat seal ring is possible for case temperatures | -25℃ ~+115℃ |
| Viscosity Limit | |
| Vmin | 5mm2/s |
| Vmax | 1600mm2/s |
| Oil Viscosity Range | |
| Vopt | 16~36mm2/s |
Features:
▶For use in mobile and stationary application areas
▶The wide control range enables the variable motor to satisfy the requirements for high speed and high torque
▶The displacement is infinitely variable from V gmax to the V gmin = 0
▶The output speed depends on the flow of the pump and the displacement of the motor
▶The output torque increases with the pressure differential between the high and low pressure side and with increasing displacement
▶Wide control range with hydrostatic transmission
▶Wide selection of control devices
▶Cost savings through elimination of gear shifts and possibility of smaller pumps
▶Compact, robust bearing system with long service life
▶High power density
▶Good starting characteristics
▶Low moment of inertia
▶Wide swing range of the clino-axis
Application:
Huade’s variable motor A6V200 is widely used in engineering machinery, industrial equipment and other fields.

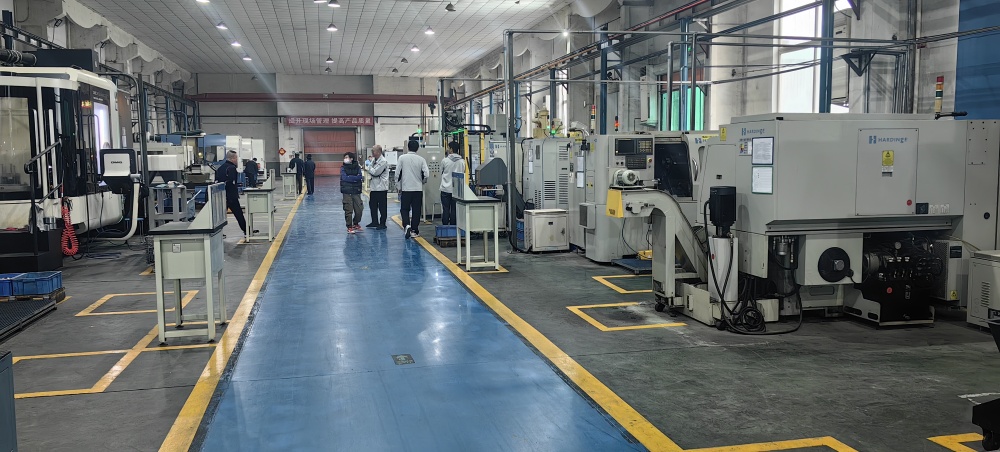

Production site
